NanoESI Spray Tips
Precision-engineered for uncompromised nanoLC-MS performance
Sothis Separations’ Nanoelectrospray Tips are the critical interface between your nanoscale LC Deans Column Switching System and Mass Spectrometric detection. Designed to minimize post-column dead volume and ensure optimal peak integrity, these tips are the gold standard for high-resolution, low-flow separations. Our NanoESI Tips are tailored to match the mobile phase flow rate during analytical separation, ensuring minimal dispersion and maximum sensitivity.
In nanoscale LC-MS workflows, especially with small ID columns and low flow rates, improper emitter design can lead to significant peak broadening. Narrow peaks from small particle columns are highly vulnerable to emitter-induced broadening. That’s why emitter design isn’t just important — it’s essential.
NanoESI Spray Tips specifications

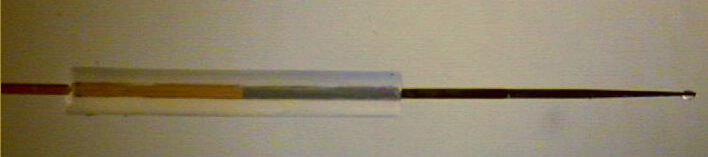

Sothis Separations’ NanoESI Spray Tips are precision-crafted gold and carbon-coated fused silica emitters, engineered for seamless integration with ultra-low flow LC-MS systems. Designed to deliver optimal electrospray performance across a range of flow regimes, these tips combine conductivity, durability and minimal dead volume for uncompromised analytical sensitivity. The NanoESI Spray Tips are butt-connected to the Analytical Column preferably using a 1/16-in. OD × 0.012-in. ID PTFE sleeve (e.g., Supelco® Part Number 58702):
Key Features:
- Material: Gold and conductive carbon coating on fused silica for enhanced ruggedness and extended lifetime
- Flow Compatibility:
- Ultra Nano-flow HPLC: 10 µm ID × 360 µm OD, tapered to 2 ± 0.2 µm, void volume 0.8 nL/cm
- Nano-flow HPLC: 25 µm ID × 360 µm OD, tapered either to 3.5 ± 0.5 µm or to 5 ± 0.5 µm, void volume 5 nL/cm
- Micro-flow HPLC: 50 µm ID × 360 µm OD, tapered to 10 ± 0.5 µm, void volume 20 nL/cm
- Length: Standard 5 cm, customizable by trimming the proximal end
- ESI Onset Voltage: 1.6–1.7 kV in nanoscale LC systems running water+0.1 vol% formic acid
These tips are ideal for high-resolution separations requiring minimal dispersion and are recommended for use with our Deans Column Switching System.
NanoESI Spray Tips
| Catalog Number | Dimensions (ID x OD) | Tip Taper | Void Volume | Price (5/pk) | Price (10/pk) | Price (15/pk) | Price (20/pk) |
|---|---|---|---|---|---|---|---|
| ES02010 | 10 x 360 µm | 2 µm | 0.8 nL/cm | € 91.- | € 173.- | € 246.- | € 317.- |
| ES03525 | 25 x 360 µm | 3.5 µm | 5 nL/cm | € 89.- | € 170.- | € 241.- | € 310.- |
| ES05025 | 25 x 360 µm | 5 µm | 5 nL/cm | € 84.- | € 160.- | € 227.- | € 293.- |
| ES10050 | 50 x 360 µm | 10 µm | 20 nL/cm | € 80.- | € 152.- | € 216.- | € 279.- |
New to Sothis Separations?
Receive 15% off your first order.*
How to order
Request for Quotation or Order Request can be placed by postal mail or e-mail:
- Postal Mail
PO Box 35
3790 CA Achterveld
The Netherlands
[Top]
* The First Order Discount (15%) is available for new customers placing their first order. To ensure fair use, the offer is limited to one use per company. We may verify eligibility using the company’s VAT number, business registration, or other identifying details. Multiple orders from the same company may not qualify. Please note that the discount applies only to items classified as ‘Goods’ as defined in our General Terms and Conditions.
